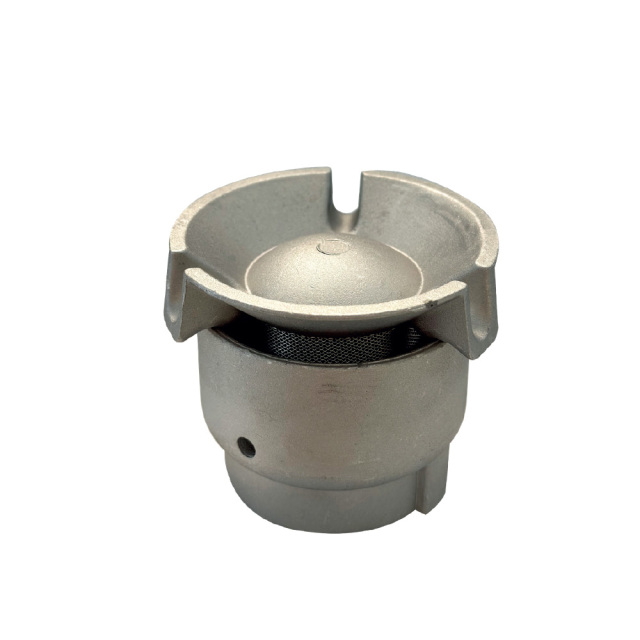

Open Atmospheric Vents are installed on the top of vent pipes from underground or above ground fuelstorage tanks. The vent cap and internal wire screen are designed to protect the tank vent lines againstintrusion and blockage from water, debris or insects. These vents are always open to atmosphere andallow any pressure or vacuum into the tank to vent.
MATERIALS
- Body: AluminumI
- Screen: 40-mesh brass
- SetScrews: Brass
FEATURES & BENEFITS
- Easy Installation
- Reliable Service-Vent cap drain spouts extend outward to deter rainwater entry.
- Corrosion-Resistant Construction-Aluminum body and cap assure a long service life.
- Complies with NFPA 30 Requirements-For venting gasoline vapors upward.
- High-Maximum Flow Rate-7,000 SCFH at 2 psi(0.14 bar)pressure drop.
- 40-Mesh Brass Wire Screen-Helps prevent debris and insects from entering the tank vent lines.
| PART NO. |
I.D. (inch) |
I.D. (mm) |
WEIGHT(kg) |
| OV23-01 |
2 |
51 |
0.12 |
